Following the successful fixing of the support channel
to the north abutment, the traffic management was switched to the other side of the road so that work could
be done on the south abutment.
This is virtually identical to the north, so work started
with lifting the channel into place onto the Mabey props. The photograph shows it in place at the end of day 2.
Then

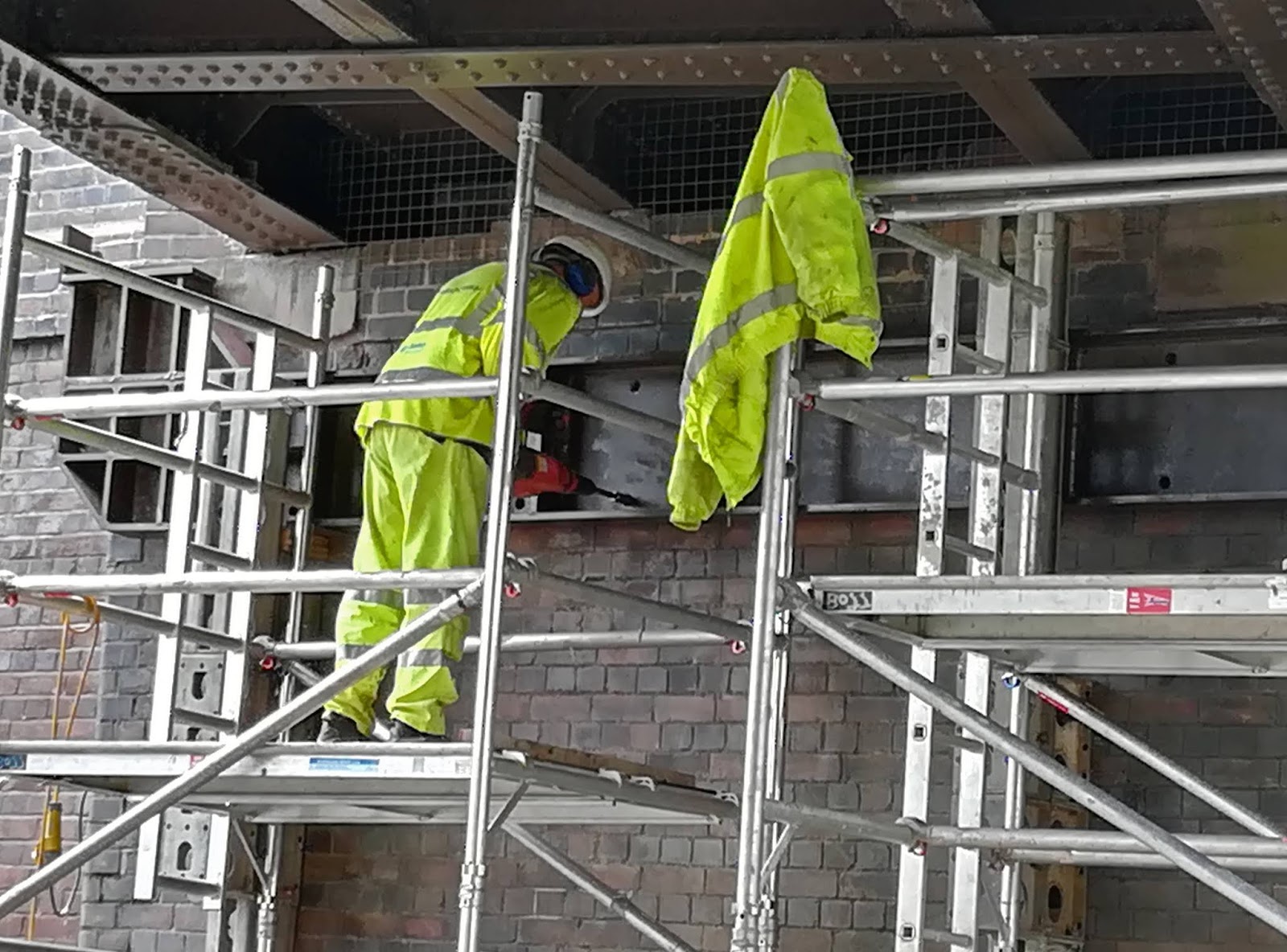

the drilling went ahead.
Soon all the resin anchored bolts were
inserted and the shuttering to the soffit was fitted ready for grouting between
the brick face and the back of the channel.
 |
| Packings being removed on the second support channel |

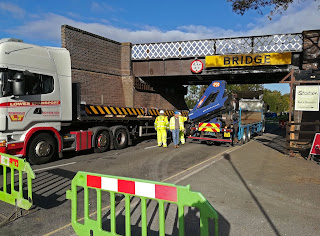

On Monday 1st October the road was
completely closed to accommodate the delivery lorry, a lorry with a crane
attachment and two cherry pickers.
 |
| Unloading the east beam. |
The beams spanning the road are app.
10.5M long, are filled with concrete and each weighs about 5 tonnes. To
facilitate the lifting, the “LOW BRIDGE” signs and the wasp stripe panels had
to be removed and relocated later. The wasp stripe panels were fitted to the
beams before lifting started. New height warning roundels were to be fitted so
the old ones also had to be removed.
The east beam was lifted first.
Then the
two Lorries were moved over and the west beam was lifted
At the end of
the first day the east side was virtually completed. The second day saw
the completion of the west beam and both were then packed to the correct level.
The new CPB seen from underneath, showing its relationship to the bridge.

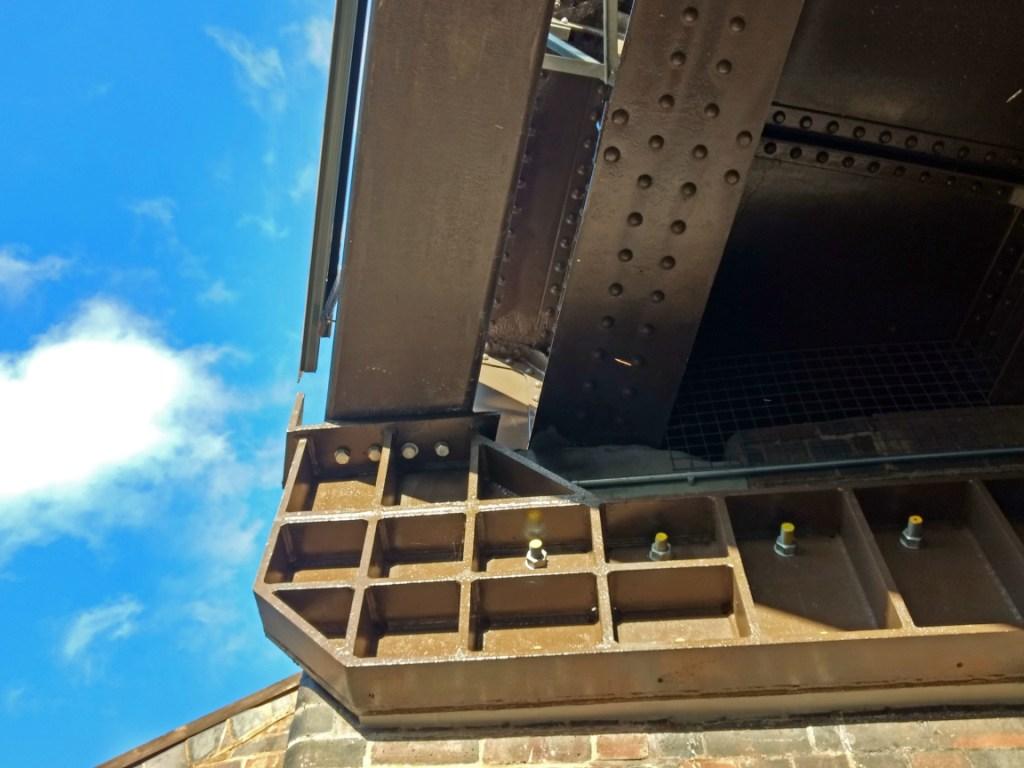

Here our bridge engineer is in discussion with our consultants Jacobs (formerly Halcrow). Both beams are in place now; the 40 bolts fixing the channels to the abutments can also be seen clearly.
The low headroom roundels are electrically lit and
their re-location meant that the electrics had to be modified. These are not warning signs (which would be triangular) but actual prohibition signs.
Finally, a view of the bridge with everything in place. As the CPBs sit immediately behind the wasp stripes, they are almost invisible.
